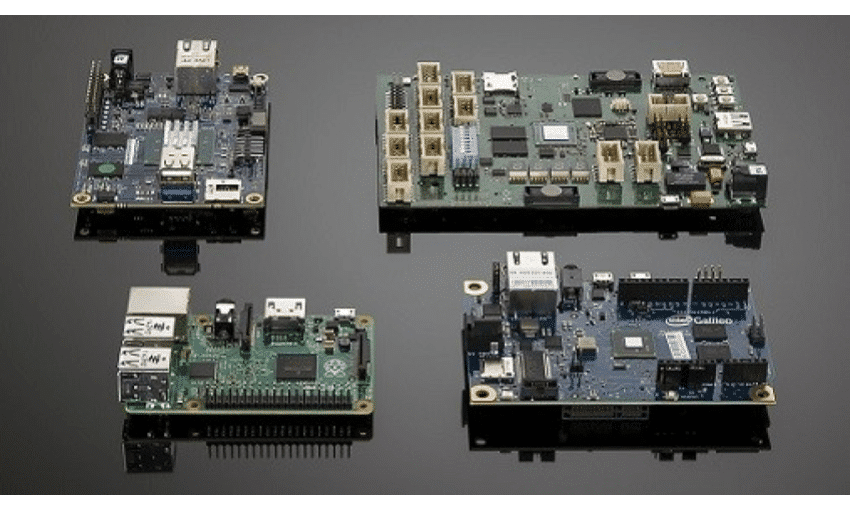

Placas de desenvolvimento compatíveis com Windows 10

Broadcom BCM2836 (CPU, GPU, DSP, SDRAM, and single USB port)

900 MHz quad-core ARM Cortex A7 (ARMv7 instruction set)

Broadcom VideoCore IV @ 250 MHz

OpenGL ES 2.0 (24 GFLOPS)

1080p30 MPEG-2 and VC-1 decoder (with license)

1080p30 h.264/MPEG-4 AVC high-profile decoder and encoder

1 GB (shared with GPU)

4

15-pin MIPI camera interface (CSI) connector

HDMI, composite video (PAL and NTSC) via 3.5 mm jack

I²S

Analog via 3.5 mm jack; digital via HDMI and I²S

MicroSD

10/100 Mbit/s Ethernet

17 GPIO plus specific functions, and HAT ID bus

64bit Intel® Atom™ E38xx Series SoC

Integrated Intel® HD Graphics

DDR3 RAM

8 MB SPI Flash – System Firmware Memory

HDMI (micro HDMI connector)

Digital – via HDMI

Analog – To be available separately via MinnowBoard
MAX Lure (sold separately)

1 – Micro SD – SDIO
1 – SATA2 3Gb/sec
1 – USB 3.0 (host)
1 – USB 2.0 (host)

1 – Serial debug  – via FTDI cable (sold separately)
10/100/1000 Ethernet – RJ45connector

8 – Buffered GPIO pins – 2 pins support PWM

I2C & SPI bus

System Firmware Flash Programming Header – Compatible with DediProg
programmer

99 x 74mm (2.9 x 3.9in)

0 – 70 deg C

5V DC

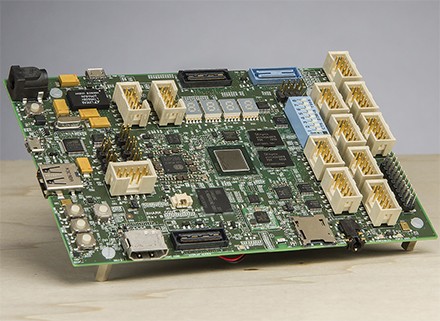

• Intel ® ATOM™ Processor Z3735G , 2M Cache, 4 Core, 1.33GHz up
  to 1.88GHz
• Intel ® HD Graphics

• 1GB 1×32 DDR3L-RS-1333
• 16GB EMMC Storage
• uSD Card expandability

• HDMI full size connector
• MIPI Display Connector

• Qty. 12 (5X2) Shrouded Pin Header connectors:
• Qty. 1 (2X10) Header for Sensors
• Qty. 2 60 pin MIPI Connector for Display and Camera
• Qty. 5 (2×2) Pin Headers for Power1 USB 2.0 type A Connector for expandability to hub for KB/Mouse, connectivity

• 1 micro USB type A/B for debug

• Audio Codec Realtek ALC5640
• Stereo headphone Jack 3.5mm
• Headers for Speaker output and Onboard Digital Mic

• Ethernet or WiFi through USB

• Intel® UEFI BIOS
• Power, Volume Up, Volume Down, Home screen and Rotation Lock
• 1 micro USB type A/B for Power
• SPI debug programming header

• 4 inch X 6 inch type 3 board with 4 stand-offs

Qualcomm Snapdragon 410 (APQ8016)

900 MHz quad-core ARM Cortex A7 (ARMv7 instruction set)

1 GB LPDDR3, 4GB eMMC

HDMI Full-size Type A connector (1080p HD @ 30fps)

MIPI-DSI on Expansion Connector for optional display/touch

(mutually exclusive with HDMI output)

1x Loudspeaker output on Expansion connector

Stereo Headphones/Line Out on Expansion connector

Auto headset plug detection

2x Analog line-in on expansion connector

MicroSD

WiFi 802.11a/b/g/n BT4.1 + LE, GPS

1x DC Jack

1x USB 2.0 micro B (device mode only)

2x USB 2.0 type A (host mode only

1x 40 pin Low Speed (LS) female expansion connector :

UART, SPI bus, I2C x2, I2S, GPIO x12, DC power

1x 60 pin High Speed (HS) expansion connector:

4L-MIPI DSI, USB, SPI, I2C, 2x MIPI CSI

1x Optional 16 Pin Audio expansion connector

Intel® Quark X1000 – single core

Quark, described by Intel at IDF2013, is very low power consumption, small form factor, and low cost; ideal for “wearables,” and the Internet of Things.

400 MHz 32 – bit Intel® Pentium ® instruction set architecture (ISA) – compatible processor

• 16 KB L1 cache
• 512 KBytes of on – die embedded SRAM
• Simple to program: Single thread, single core, constant speed
• ACPI compatible CPU sleep states supported
• Integrated Real Time Clock (RTC), with optional 3V  “coin cell” battery for operation between turn on cycles

• 8 MByte Legacy SPI Flash to store firmware (bootloader) and the latest sketch
  – Between 256 KByte and 512 KByte dedicated for sketch storage
• 512 KByte embedded SRAM
• 256 MByte DRAM
• Optional micro SD card offers up to 32 GByte of storage
• USB storage works with any USB 2.0 compatible drive
• 11 KByte EEPROM pr
  ogrammed via the EEPROM library

• 10/100 Mb Ethernet RJ45 port
• USB 2.0 Client port
• USB 2.0 Host port
• RS-232 UART port and 3.5mm jack
• Mini PCI Express (mPCIe) slot with USB2.0 Host support

10cm x 7cm  (slight overlap for power jack)
