Este post faz parte da série Qt5.4 na Raspberry Pi 2 com Yocto Project
Dando continuidade em nossa série de posts sobre o Yocto Project, neste post ensinaremos como construir uma imagem Linux embarcado contendo o Qt5.4 para a Raspberry Pi 2 usando seu acelerador gráfico VideoCore IV. Na segunda parte veremos como gerar um SDK e integrá-lo ao QtCreator para que possamos desenvolver e compilar aplicações para o nosso target. Se você ainda não teve contato com o Yocto, sugiro que faça o tutorial do Henrique Rossi sobre Beaglebone Black + Yocto.
Umas das principais evoluções do Qt5 em relação ao Qt4 é o melhor uso da GPU , dentre outras características.
Preparando o Host
O Yocto Project suporta oficialmente as seguintes distribuições GNU/Linux como ambiente de construção:
- Ubuntu 14.04 e 14.10;
- Fedora 21;
- CentOS 6.x e 7.x;
- Debian 7.x e 8.x;
- openSUSE 13.2.
Para que ele execute no Host alguns pacotes necessitam ser instalados.
Os Melhores Treinamentos sobre Sistemas embarcados e IoT
Cursos com professores qualificados para acelerar sua carreira e projetos
Ubuntu e Debian:
sudo apt-get install gawk wget git-core diffstat unzip texinfo gcc-multilib \
build-essential chrpath socat libsdl1.2-dev xterm
Fedora:
sudo yum install gawk make wget tar bzip2 gzip python unzip perl patch \
diffutils diffstat git cpp gcc gcc-c++ glibc-devel texinfo chrpath \
ccache perl-Data-Dumper perl-Text-ParseWords perl-Thread-Queue socat \
SDL-devel xterm perl-Thread-Queue
openSUSE:
sudo zypper install python gcc gcc-c++ git chrpath make wget python-xml \
diffstat makeinfo python-curses patch socat libSDL-devel xterm
CentOS:
sudo yum install gawk make wget tar bzip2 gzip python unzip perl patch \
diffutils diffstat git cpp gcc gcc-c++ glibc-devel texinfo chrpath socat \
SDL-devel xterm
Montando o Ambiente de construção
Vamos criar os diretórios e baixar os fontes necessários:
mkdir -p ~/yocto/dl cd ~/yocto git clone -b fido git://git.yoctoproject.org/poky poky-fido cd poky-fido git clone -b fido git://git.yoctoproject.org/meta-raspberrypi git clone -b fido https://github.com/meta-qt5/meta-qt5.git git clone -b fido git://git.openembedded.org/meta-openembedded git clone -b fido https://bitbucket.org/embarcados/meta-embarcados.git
Note que estamos usando a versão “fido” do Yocto Project. E baixamos também o layer meta-raspberrypi que possui o BSP (Board Support Package) com os fontes necessários (bootloader, kernel, bibliotecas para o acelerador gráfico, etc.) para rodar a nossa distribuição na Raspberry Pi 2. Além disso iremos utilizar os layers meta-qt5 (que possuem as receitas para compilar o Qt5), meta-openembedded (com aplicativos adicionais) e o meta-embarcados (com as customizações necessárias para gerarmos a imagem de testes).
Agora vamos configurar o ambiente para gerarmos os artefatos de software:
cd ~/yocto . poky-fido/oe-init-build-env build-fido
Edite o arquivo ~/yocto/build-fido/conf/bblayers.conf para que fique da seguinte maneira:
# LAYER_CONF_VERSION is increased each time build/conf/bblayers.conf
# changes incompatibly
LCONF_VERSION = "6"
BBPATH = "${TOPDIR}"
BBFILES ?= ""
BBLAYERS ?= " \
${TOPDIR}/../poky-fido/meta-embarcados \
${TOPDIR}/../poky-fido/meta-embarcados/meta-rpi \
${TOPDIR}/../poky-fido/meta-qt5 \
${TOPDIR}/../poky-fido/meta-raspberrypi \
${TOPDIR}/../poky-fido/meta-openembedded/meta-oe \
${TOPDIR}/../poky-fido/meta-openembedded/meta-ruby \
${TOPDIR}/../poky-fido/meta \
${TOPDIR}/../poky-fido/meta-yocto \
"
O arquivo bblayers.conf configura quais serão as camadas a serem consideradas pelo sistema de build.
Adicione as seguintes variáveis no começo do arquivo ~/yocto/build-fido/conf/local.conf
MACHINE = "raspberrypi2"
DISTRO = "poky"
DL_DIR = "${TOPDIR}/../dl"
PACKAGE_CLASSES = "package_ipk"
DISTRO_FEATURES_remove = "x11 wayland"
LICENSE_FLAGS_WHITELIST = "commercial license"
# Set Rpi GPU Memory to 128MB
GPU_MEM = "128"
BBMASK = "meta-embarcados/recipes-browser/chromium/chromium_%.bbappend"
Note que configuramos nossa machine como sendo a raspberrypi2, mudamos o diretório de download para podermos reutilizar os fontes baixados em outros projetos e usaremos o gerenciador de pacotes ipk (ele é mais indicado para sistemas embarcados porque não exige muitos recursos para funcionar). Além disso configuramos a GPU para usar 128MB de memória RAM.
NOTA: Se você quiser fazer este tutorial para a Raspberry Pi (modelos antigos), basta trocar o texto “rapberrypi2” por “raspberrypi“.
Gerando a imagem com Qt5
Depois de baixado os fontes e ter configurado o sistema de build , vamos gerar uma imagem com diversos aplicativos de demostração (qt5-image-demo) do Qt5 (no momento de escrita desse artigo a versão do Qt utilizada é a 5.4.1).
cd ~/yocto . poky-fido/oe-init-build-env build-fido bitbake qt5-image-demo
Esta é a configuração de build que foi utilizada:
Build Configuration: BB_VERSION = "1.26.0" BUILD_SYS = "x86_64-linux" NATIVELSBSTRING = "Ubuntu-14.04" TARGET_SYS = "arm-poky-linux-gnueabi" MACHINE = "raspberrypi2" DISTRO = "poky" DISTRO_VERSION = "1.8" TUNE_FEATURES = "arm armv7a vfp thumb neon callconvention-hard vfpv4 cortexa7" TARGET_FPU = "vfp-vfpv4-neon" meta-embarcados meta-rpi = "fido:b81da11130c01c4b1e5fe85b1ad98c1907fff05c" meta-qt5 = "fido:3ccdc239b02aca03dc1e9316b7c5c870b3b59368" meta-raspberrypi = "fido:b896a7da70dd7a16ba7ffd664f7747cb37e1d142" meta-oe meta-ruby = "fido:5b0305d9efa4b5692cd942586fb7aa92dba42d59" meta meta-yocto = "fido:508c4cac320d78a983ce105a78c0599102e2c349"
Gravando a imagem
A camada meta-raspberrypi possui uma classe que implementa a construção da imagem do sistema a ser gravada diretamente em um SDcard.
O Yocto gerou a imagem do SDcard que está disponível em: ~/yocto/build-fido/tmp/deploy/images/raspberrypi2/ . De posse desse arquivo podemos gravá-lo no SDcard.
Insira um SDcard card no computador PC ou notebook (sistema host) e descubra qual o device node criado pelo sistema operacional. Tente um dos seguintes comandos:
dmesg sudo fdisk -l
Caso, por exemplo, o device node criado seja /dev/sdb, use o seguinte comando:
sudo umount /dev/sdb* sudo dd if=~/yocto/build-fido/tmp/deploy/images/raspberrypi2/qt5-image-demo-raspberrypi2.rpi-sdimg of=/dev/sdb; sync
Testando a imagem
Remova o SDcard do computador e insira-o na Rpi, conecte-a a uma TV por um cabo HDMI, e a um mouse através do conector USB da placa. Você precisará acessar o sistema via conexão serial. Para fazer a conexão entre o HOST e a Rpi siga os passos dessa wiki.
Abaixo segue o log da serial depois do boot do sistema:
[ 0.000000] Booting Linux on physical CPU 0xf00 [ 0.000000] Initializing cgroup subsys cpu [ 0.000000] Initializing cgroup subsys cpuacct [ 0.000000] Linux version 3.18.5 (dsueiro@dsueiro-N46VM) (gcc version 4.9.2 (GCC) ) #2 SMP PREEMPT Sat May 30 15:45:04 BRT 2015 [ 0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c5387d [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache [ 0.000000] Machine model: Raspberry Pi 2 Model B [ 0.000000] cma: Reserved 8 MiB at 0x36800000 [ 0.000000] Memory policy: Data cache writealloc [ 0.000000] On node 0 totalpages: 225280 [ 0.000000] free_area_init_node: node 0, pgdat 80846440, node_mem_map b6113000 [ 0.000000] Normal zone: 1760 pages used for memmap [ 0.000000] Normal zone: 0 pages reserved [ 0.000000] Normal zone: 225280 pages, LIFO batch:31 [ 0.000000] [bcm2709_smp_init_cpus] enter (8620->f3003010) [ 0.000000] [bcm2709_smp_init_cpus] ncores=4 [ 0.000000] PERCPU: Embedded 11 pages/cpu @b60dd000 s12864 r8192 d24000 u45056 [ 0.000000] pcpu-alloc: s12864 r8192 d24000 u45056 alloc=11*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 223520 [ 0.000000] Kernel command line: dma.dmachans=0x7f35 bcm2708_fb.fbwidth=1184 bcm2708_fb.fbheight=624 bcm2709.boardrev=0xa21041 bcm2709.serial=0 x464fb105 smsc95xx.macaddr=B8:27:EB:4F:B1:05 bcm2708_fb.fbswap=1 bcm2709.disk_led_gpio=47 bcm2709.disk_led_active_low=0 sdhci-bcm2708.emmc_clock_f req=250000000 vc_mem.mem_base=0x3dc00000 vc_mem.mem_size=0x3f000000 dwc_otg.lpm_enable=0 console=ttyAMA0,115200 kgdboc=ttyAMA0,115200 root=/dev/m mcblk0p2 rootfstype=ext4 rootwait debug [ 0.000000] PID hash table entries: 4096 (order: 2, 16384 bytes) [ 0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes) [ 0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes) [ 0.000000] Memory: 875564K/901120K available (5866K kernel code, 377K rwdata, 1828K rodata, 400K init, 771K bss, 25556K reserved) [ 0.000000] Virtual kernel memory layout: [ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB) [ 0.000000] fixmap : 0xffc00000 - 0xffe00000 (2048 kB) [ 0.000000] vmalloc : 0xb7800000 - 0xff000000 (1144 MB) [ 0.000000] lowmem : 0x80000000 - 0xb7000000 ( 880 MB) [ 0.000000] modules : 0x7f000000 - 0x80000000 ( 16 MB) [ 0.000000] .text : 0x80008000 - 0x8078bb18 (7695 kB) [ 0.000000] .init : 0x8078c000 - 0x807f0000 ( 400 kB) [ 0.000000] .data : 0x807f0000 - 0x8084e77c ( 378 kB) [ 0.000000] .bss : 0x8084e77c - 0x8090f654 ( 772 kB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] Preemptible hierarchical RCU implementation. [ 0.000000] NR_IRQS:480 [ 0.000000] Architected cp15 timer(s) running at 19.20MHz (virt). [ 0.000016] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 3579139424256ns [ 0.000040] Switching to timer-based delay loop, resolution 52ns [ 0.000334] Console: colour dummy device 80x30 [ 0.000371] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.40 BogoMIPS (lpj=192000) [ 0.000396] pid_max: default: 32768 minimum: 301 [ 0.000819] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.000841] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes) [ 0.002114] Initializing cgroup subsys memory [ 0.002165] Initializing cgroup subsys devices [ 0.002193] Initializing cgroup subsys freezer [ 0.002219] Initializing cgroup subsys net_cls [ 0.002253] Initializing cgroup subsys blkio [ 0.002344] CPU: Testing write buffer coherency: ok [ 0.002426] ftrace: allocating 20010 entries in 59 pages [ 0.051121] CPU0: update cpu_capacity 1024 [ 0.051161] CPU0: thread -1, cpu 0, socket 15, mpidr 80000f00 [ 0.051180] [bcm2709_smp_prepare_cpus] enter [ 0.051329] Setting up static identity map for 0x54a858 - 0x54a8b0 [ 0.111083] [bcm2709_boot_secondary] cpu:1 started (0) 16 [ 0.111463] CPU1: Booted secondary processor [ 0.111471] [bcm2709_secondary_init] enter cpu:1 [ 0.111526] CPU1: update cpu_capacity 1024 [ 0.111535] CPU1: thread -1, cpu 1, socket 15, mpidr 80000f01 [ 0.131051] [bcm2709_boot_secondary] cpu:2 started (0) 18 [ 0.131386] CPU2: Booted secondary processor [ 0.131393] [bcm2709_secondary_init] enter cpu:2 [ 0.131425] CPU2: update cpu_capacity 1024 [ 0.131434] CPU2: thread -1, cpu 2, socket 15, mpidr 80000f02 [ 0.151103] [bcm2709_boot_secondary] cpu:3 started (0) 18 [ 0.151324] CPU3: Booted secondary processor [ 0.151331] [bcm2709_secondary_init] enter cpu:3 [ 0.151361] CPU3: update cpu_capacity 1024 [ 0.151370] CPU3: thread -1, cpu 3, socket 15, mpidr 80000f03 [ 0.151464] Brought up 4 CPUs [ 0.151500] SMP: Total of 4 processors activated (153.60 BogoMIPS). [ 0.151511] CPU: All CPU(s) started in SVC mode. [ 0.152524] devtmpfs: initialized [ 0.175698] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5 [ 0.177796] pinctrl core: initialized pinctrl subsystem [ 0.180643] NET: Registered protocol family 16 [ 0.186298] DMA: preallocated 4096 KiB pool for atomic coherent allocations [ 0.210899] cpuidle: using governor ladder [ 0.240928] cpuidle: using governor menu [ 0.241320] bcm2709.uart_clock = 3000000 [ 0.244075] No ATAGs? [ 0.244130] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers. [ 0.244145] hw-breakpoint: maximum watchpoint size is 8 bytes. [ 0.244184] mailbox: Broadcom VideoCore Mailbox driver [ 0.244297] bcm2708_vcio: mailbox at f300b880 [ 0.244383] bcm_power: Broadcom power driver [ 0.244399] bcm_power_open() -> 0 [ 0.244410] bcm_power_request(0, 8) [ 0.745103] bcm_mailbox_read -> 00000080, 0 [ 0.745117] bcm_power_request -> 0 [ 0.745239] Serial: AMBA PL011 UART driver [ 0.745385] dev:f1: ttyAMA0 at MMIO 0x3f201000 (irq = 83, base_baud = 0) is a PL011 rev3 [ 1.289458] console [ttyAMA0] enabled [ 1.364440] SCSI subsystem initialized [ 1.368442] usbcore: registered new interface driver usbfs [ 1.374088] usbcore: registered new interface driver hub [ 1.379522] usbcore: registered new device driver usb [ 1.386466] Switched to clocksource arch_sys_counter [ 1.421164] FS-Cache: Loaded [ 1.424391] CacheFiles: Loaded [ 1.439619] NET: Registered protocol family 2 [ 1.445227] TCP established hash table entries: 8192 (order: 3, 32768 bytes) [ 1.452423] TCP bind hash table entries: 8192 (order: 4, 65536 bytes) [ 1.459078] TCP: Hash tables configured (established 8192 bind 8192) [ 1.465525] TCP: reno registered [ 1.468778] UDP hash table entries: 512 (order: 2, 16384 bytes) [ 1.474741] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes) [ 1.481456] NET: Registered protocol family 1 [ 1.486237] RPC: Registered named UNIX socket transport module. [ 1.492210] RPC: Registered udp transport module. [ 1.496922] RPC: Registered tcp transport module. [ 1.501619] RPC: Registered tcp NFSv4.1 backchannel transport module. [ 1.509102] bcm2708_dma: DMA manager at f3007000 [ 1.513872] vc-mem: phys_addr:0x00000000 mem_base=0x3dc00000 mem_size:0x3f000000(1008 MiB) [ 1.523853] futex hash table entries: 1024 (order: 4, 65536 bytes) [ 1.530335] audit: initializing netlink subsys (disabled) [ 1.535781] audit: type=2000 audit(1.319:1): initialized [ 1.557169] VFS: Disk quotas dquot_6.5.2 [ 1.561464] Dquot-cache hash table entries: 1024 (order 0, 4096 bytes) [ 1.571119] FS-Cache: Netfs 'nfs' registered for caching [ 1.577430] NFS: Registering the id_resolver key type [ 1.582544] Key type id_resolver registered [ 1.586818] Key type id_legacy registered [ 1.591936] msgmni has been set to 1726 [ 1.597470] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 252) [ 1.605063] io scheduler noop registered [ 1.609023] io scheduler deadline registered [ 1.613615] io scheduler cfq registered (default) [ 1.620913] BCM2708FB: allocated DMA memory f6c00000 [ 1.625904] BCM2708FB: allocated DMA channel 0 @ f3007000 [ 1.644919] Console: switching to colour frame buffer device 148x39 [ 1.659940] bcm2708-dmaengine bcm2708-dmaengine: Load BCM2835 DMA engine driver [ 1.747328] uart-pl011 dev:f1: no DMA platform data [ 1.752268] kgdb: Registered I/O driver kgdboc. [ 1.787080] vc-cma: Videocore CMA driver [ 1.791001] vc-cma: vc_cma_base = 0x00000000 [ 1.795697] vc-cma: vc_cma_size = 0x00000000 (0 MiB) [ 1.801119] vc-cma: vc_cma_initial = 0x00000000 (0 MiB) [ 1.818242] brd: module loaded [ 1.827300] loop: module loaded [ 1.830795] vchiq: vchiq_init_state: slot_zero = 0xb6800000, is_master = 0 [ 1.838462] Loading iSCSI transport class v2.0-870. [ 1.844241] usbcore: registered new interface driver smsc95xx [ 1.850074] dwc_otg: version 3.00a 10-AUG-2012 (platform bus) [ 2.056116] Core Release: 2.80a [ 2.059296] Setting default values for core params [ 2.064115] Finished setting default values for core params [ 2.270081] Using Buffer DMA mode [ 2.273395] Periodic Transfer Interrupt Enhancement - disabled [ 2.279229] Multiprocessor Interrupt Enhancement - disabled [ 2.284793] OTG VER PARAM: 0, OTG VER FLAG: 0 [ 2.289160] Dedicated Tx FIFOs mode [ 2.292992] WARN::dwc_otg_hcd_init:1047: FIQ DMA bounce buffers: virt = 0xb6c14000 dma = 0xf6c14000 len=9024 [ 2.302849] FIQ FSM acceleration enabled for : [ 2.302849] Non-periodic Split Transactions [ 2.302849] Periodic Split Transactions [ 2.302849] High-Speed Isochronous Endpoints [ 2.319539] dwc_otg: Microframe scheduler enabled [ 2.324286] WARN::hcd_init_fiq:412: FIQ on core 1 at 0x803f6c44 [ 2.330204] WARN::hcd_init_fiq:413: FIQ ASM at 0x803f6fb4 length 36 [ 2.336469] WARN::hcd_init_fiq:438: MPHI regs_base at 0xb7806000 [ 2.342500] dwc_otg bcm2708_usb: DWC OTG Controller [ 2.347424] dwc_otg bcm2708_usb: new USB bus registered, assigned bus number 1 [ 2.354674] dwc_otg bcm2708_usb: irq 32, io mem 0x00000000 [ 2.360215] Init: Port Power? op_state=1 [ 2.364131] Init: Power Port (0) [ 2.367673] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002 [ 2.374459] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 2.381691] usb usb1: Product: DWC OTG Controller [ 2.386392] usb usb1: Manufacturer: Linux 3.18.5 dwc_otg_hcd [ 2.392060] usb usb1: SerialNumber: bcm2708_usb [ 2.397574] hub 1-0:1.0: USB hub found [ 2.401381] hub 1-0:1.0: 1 port detected [ 2.405810] dwc_otg: FIQ enabled [ 2.409074] dwc_otg: NAK holdoff enabled [ 2.412992] dwc_otg: FIQ split-transaction FSM enabled [ 2.418169] Module dwc_common_port init [ 2.422356] usbcore: registered new interface driver usb-storage [ 2.428663] mousedev: PS/2 mouse device common for all mice [ 2.434933] bcm2835-cpufreq: min=600000 max=900000 [ 2.440118] sdhci: Secure Digital Host Controller Interface driver [ 2.446290] sdhci: Copyright(c) Pierre Ossman [ 2.450893] DMA channels allocated for the MMC driver [ 2.486499] Load BCM2835 MMC driver [ 2.490449] sdhci-pltfm: SDHCI platform and OF driver helper [ 2.500030] ledtrig-cpu: registered to indicate activity on CPUs [ 2.506241] hidraw: raw HID events driver (C) Jiri Kosina [ 2.512003] usbcore: registered new interface driver usbhid [ 2.517676] usbhid: USB HID core driver [ 2.522871] TCP: cubic registered [ 2.527303] Initializing XFRM netlink socket [ 2.531622] NET: Registered protocol family 17 [ 2.536258] Key type dns_resolver registered [ 2.541040] Registering SWP/SWPB emulation handler [ 2.546784] registered taskstats version 1 [ 2.551136] vc-sm: Videocore shared memory driver [ 2.555842] [vc_sm_connected_init]: start [ 2.560651] [vc_sm_connected_init]: end - returning 0 �[ 2.567135] Waiting for root device /dev/mmcblk0p2... [ 2.572271] mmc0: host does not support reading read-only switch, assuming write-enable [ 2.584354] mmc0: new high speed SDHC card at address aaaa [ 2.590568] mmcblk0: mmc0:aaaa SL08G 7.40 GiB [ 2.596637] Indeed it is in host mode hprt0 = 00021501 [ 2.596666] mmcblk0: p1 p2 [ 2.690567] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null) [ 2.698743] VFS: Mounted root (ext4 filesystem) readonly on device 179:2. [ 2.706676] devtmpfs: mounted [ 2.710328] Freeing unused kernel memory: 400K (8078c000 - 807f0000) [ 2.776586] usb 1-1: new high-speed USB device number 2 using dwc_otg [ 2.783210] Indeed it is in host mode hprt0 = 00001101 INIT: xW����������2.88 booting �[ 2.986964] usb 1-1: New USB device found, idVendor=0424, idProduct=9514 [ 2.993680] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 3.001973] hub 1-1:1.0: USB hub found [ 3.005840] hub 1-1:1.0: 5 ports detected Starting udev [ 3.286794] usb 1-1.1: new high-speed USB device number 3 using dwc_otg [ 3.406914] usb 1-1.1: New USB device found, idVendor=0424, idProduct=ec00 [ 3.413821] usb 1-1.1: New USB device strings: Mfr=0, Product=0, SerialNumber=0 [ 3.424517] smsc95xx v1.0.4 [ 3.424852] udevd[103]: starting version 182 [ 3.490817] smsc95xx 1-1.1:1.0 eth0: register 'smsc95xx' at usb-bcm2708_usb-1.1, smsc95xx USB 2.0 Ethernet, b8:27:eb:4f:b1:05 [ 4.195946] EXT4-fs (mmcblk0p2): re-mounted. Opts: data=ordered [ 4.325567] random: dd urandom read with 86 bits of entropy available Populating dev cache ALSA: Restoring mixer settings... /usr/sbin/alsactl: load_state:1729: No soundcards found... Sun May 31 10:31:38 UTC 2015 INIT: Entering runlevel: 5 Configuring network interfaces... [ 6.819098] smsc95xx 1-1.1:1.0 eth0: hardware isn't capable of remote wakeup udhcpc (v1.23.1) started Sending discover... [ 8.350546] smsc95xx 1-1.1:1.0 eth0: link up, 100Mbps, full-duplex, lpa 0xCDE1 Sending discover... Sending select for 10.42.0.41... Lease of 10.42.0.41 obtained, lease time 3600 /etc/udhcpc.d/50default: Adding DNS 10.42.0.1 done. Starting system message bus: dbus. Starting Dropbear SSH server: Generating key, this may take a while... [ 13.613211] random: nonblocking pool is initialized Public key portion is: ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQDQpCvjUaUR+RDMAAOaPpgaf7Gyoisz1W7xBymTvQq7Il8dbm4GYayGDbbI/ohxk1Dlw+++R/pbhQyEztCRW8cIPeWDLTLc14MQRnO/+VJ5oH 5qfGgt8PRep8Owjn1z6dWWPVBcfXfxcYLY0QnQaX7KXKHNvfz8hbNuII7HvLFhtb8hrDKPtewR9AHbXWDCu7FI+Hal3r+i90NBZXNd8lpWVvC0MM00aO70R3nBW1XfcZz1BfAs6e48DnqtcxY6 5ms5pbM1AiIZxQneSjB95xD+BCwzY6qAZeoNWiPLcCkQ2+LdyDhdipYqrTHrv16zzL49cLTNt3xKghybWmNoiu2/ root@raspberrypi2 Fingerprint: md5 97:cc:5d:30:11:9b:67:ea:04:83:73:7d:88:17:cc:b1 [ 22.088263] NET: Registered protocol family 10 dropbear. Starting rpcbind daemon...done. Starting advanced power management daemon: No APM support in kernel (failed.) Starting syslogd/klogd: done * Starting Avahi mDNS/DNS-SD Daemon: avahi-daemon ...done. Starting Telephony daemon Starting Linux NFC daemon [ 22.614781] Bluetooth: Core ver 2.19 [ 22.618548] NET: Registered protocol family 31 [ 22.623016] Bluetooth: HCI device and connection manager initialized [ 22.629478] Bluetooth: HCI socket layer initialized [ 22.634378] Bluetooth: L2CAP socket layer initialized [ 22.637820] nfc: nfc_init: NFC Core ver 0.1 [ 22.637971] NET: Registered protocol family 39 [ 22.649775] Bluetooth: SCO socket layer initialized Poky (Yocto Project Reference Distro) 1.8 raspberrypi2 /dev/ttyAMA0 raspberrypi2 login:
Vamos rodar o Qt5 Cinematic Experience que é um exemplo bastante interessante que visa explorar diversos recursos usando aceleração gráfica por hardware. Para isso faça o login como root e execute o programa:
Qt5_CinematicExperience -platform eglfs
Note que subimos o aplicativo com a opção “-platform eglfs”, isso configura o Qt para utilizar o OpenGL através do pluging EGLFS.
A figura 1 mostra um screenshot do Qt5 Cinematic Experience.
Agora vamos rodar o exemplo do QtSmartHome:
cd /usr/share/qtsmarthome-1.0/ ./smarthome -platform eglfs

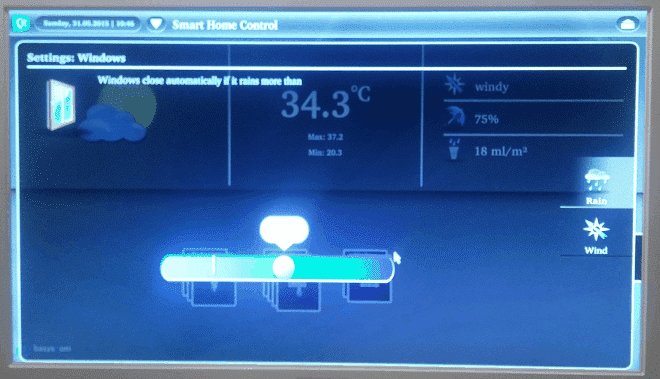

A figura 2 mostra um screenshot do QtSmartHome:
Agora vamos rodar o exemplo Qt5EveryWhereDemo:
cd /usr/share/qt5everywheredemo-1.0 ./QtDemo -platform eglfs

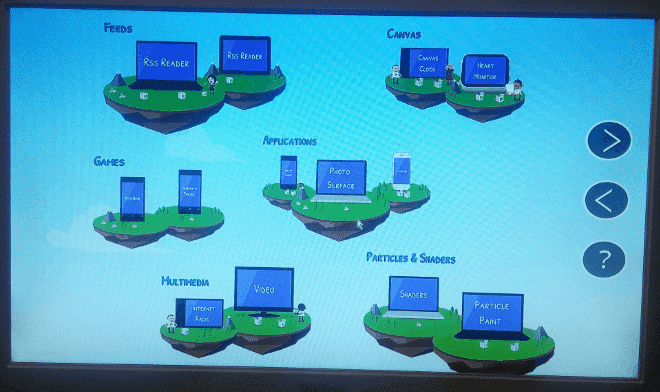

A figura 3 mostra um screenshot do Qt5EveryWhereDemo:
Aproveite para explorar os diversos exemplos presentes no caminho /usr/share/qt5 e lembre-se de sempre passar a opção “-platform eglfs” quando carregar os programas.
Dicas e Truques
Para remover o cursor piscante na tela rode o comando:
echo 0 > /sys/class/graphics/fbcon/cursor_blink
Para desabilitar o desligamento da saída de vídeo rode o comando:
echo -e '\033[9;0]' > /dev/tty1
O que vem por aí
Na próxima parte veremos como gerar uma toolchain com o Qt5 para ser integrada a IDE QtCreator para desenvolvimento e compilação das aplicações Qt.
